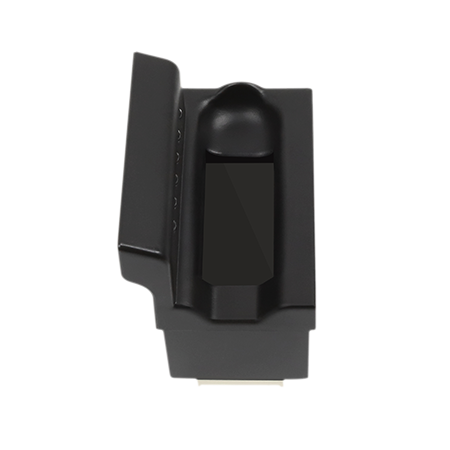

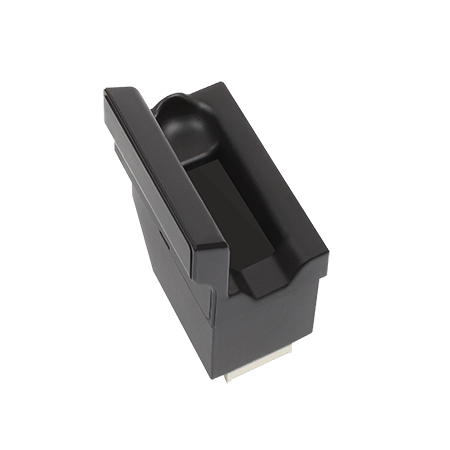

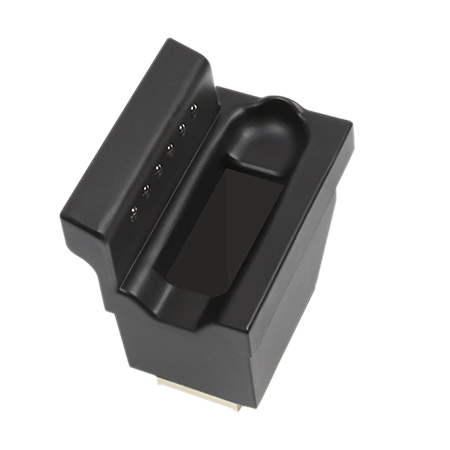

Finger Vein Acquisition Instrument Module
XG-V6SP
XG-V6SP is a high-performance 32-bit microprocessor customized by XGZX for finger vein series modules. It has high-performance DSP computing power, the core adopts SCM architecture. The unique design of left light source in China has the characteristics of fast power on, high efficiency, low power consumption, high integration, small size and never crash.
Finger Vein Acquisition Instrument Module XG-V6SP
Overview
The SOC of XG-V6SP is a high-performance 32-bit microprocessor customized by XGZX for finger vein series modules. It has high-performance DSP computing ability. The core adopts SCM architecture. XGZX is the only core technology manufacturer in vein recognition industry that vein algorithm can run on single-chip microcomputer. The typical operating frequency of SOC is 128MHZ, and the operation speed of 100 ID/300 template can be fast in 1S. SOC has rich peripheral interfaces, such as USB2.0 device, full duplex UART, PWM voice output, etc. SOC also has extended functions, such as Wigan input and output, relay, key indicator light, I2C communication, etc., which are suitable for the secondary development and application of authorized terminal, human resources certification terminal, medical self-service terminal, login device, system integration products.
Parameter

  Identification method

  1:1 comparision unlimited capacity

  False accept rate(FAR)

  <0.0001 %(the highest safety level

  False reject rate(FRR)

  <0.01 %(high safety level

  Recognition speed

  <1 second

  Communication interface

  USB2.0、UART

  Support platform

  Windows、Window CE、Linux、Android、IOS、MCU

  Working voltage

  DC 5.0V(±5%)

  Working current

  <120mA/5V

  Working environment

  temperature:-20~60     humidity:20%~80%RH


Features

?  Product Features:

● XG-C6S5, a high-performance 32-bit microprocessor customized by XGZX for finger vein series modules, is unique and professional;

● Finger vein module realized by single-chip microcomputer platform for domestic exclusive application;

● Advantages of single chip microcomputer platform: simple hardware, fast power-on speed, high efficiency, low power consumption, high integration, small size, and never crash;

● Exclusive domestic left light source product design, combining ergonomics and Chinese right-handed habits;

● The exclusive USB mode in China adopts a virtual optical drive design, no need to install a driver, convenient operation and better compatibility.


? Function extension:

● Extensible support Wigan interface

● Expandable support for buttons, indicator lights, relays, alarms, networks etc.

● Support extended PWM voice output

?  Industrial design:

● The finger vein optical lens adopts 4G design pure glass technology, which has stronger light transmission, less distortion and no aging.

● The window filter adopts tempered glass and double-layer coating process, which has better light transmission and stronger hardness.

?  Applications:

● Authorized terminal, human resources certification terminal, medical self-service terminal, login device, system integration
