Finger Vein Controller

XG-S300

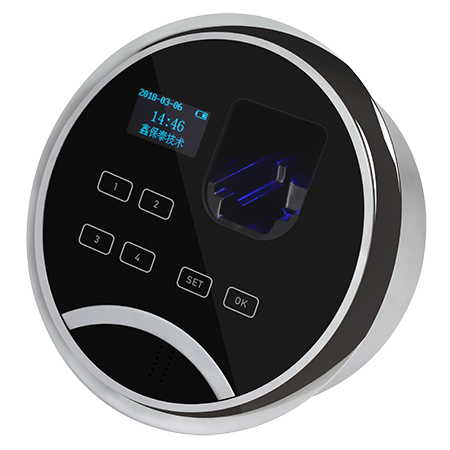

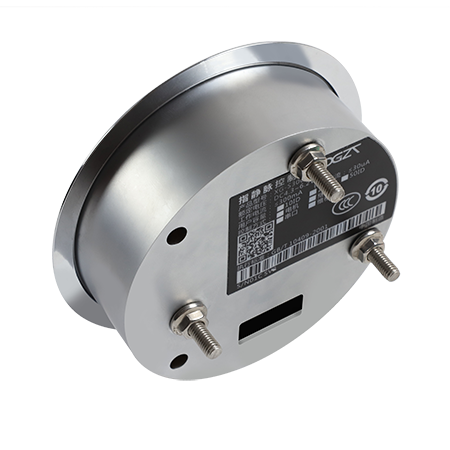

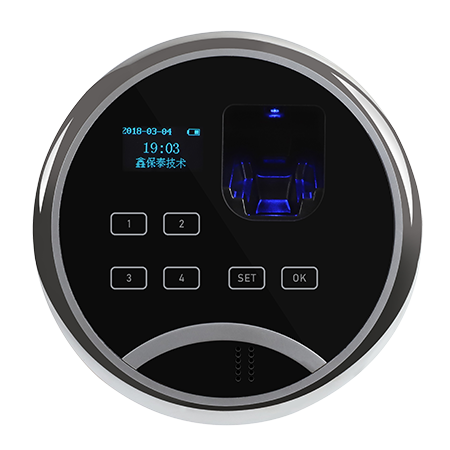

XG-S300 finger vein controller is a kind of control terminal which can identify and process relevant information by finger vein and control the mechanical actuator to open and close, has a very high anti-destructive ability. The main body has enough mechanical strength and rigidity, and can bear 220N pressure and 4.65 impact force. The first finger vein controller applied in safe in China.

Overview

XG-S300 finger vein controller is a controller integrated with multi-function and multi-purpose, which has rich external control interfaces including asynchronous motor output, relay output, serial port output and Wigan output, etc., and preset multiple opening and closing detection such as door opening and closing position detection, door position detection and hall induction etc. for intelligent door control such as intelligent lock and intelligent cabinet. Suitable for safety box, safety cabinet, intelligent gun cabinet, vault door and other products.

Parameter

Identification method	finger vein/password/password + finger vein
Output signal	M: asynchronous motor K:relay output U:UART output W:Wigen output
User capacity	Standard 20 users，maximum support 50 users
Recognition speed	＜0.1 second
Touch keyboard	4+2 mode，4-digit + 2-digit function, password support 8-12 digits
USB interface	USB2.0 communication and emergency power supply input
Working voltage	DC 4.5～12V（±3%）
Working current	＜40mA (peak less than 150mA)
Standby mode	＜30uA （System sleep mode, support keyboard or finger vein to wake up the system, wake-up time＜20mS）
Power detection	system supports power voltage real-time detection through 3-channel ADC, with higher accuracy and more accurate
System low power protection	When the power is lower than the lower limit, the system will have forced shutdown protection
Working environment	temperature：-20℃～60℃ humidity：20%～80%RH
