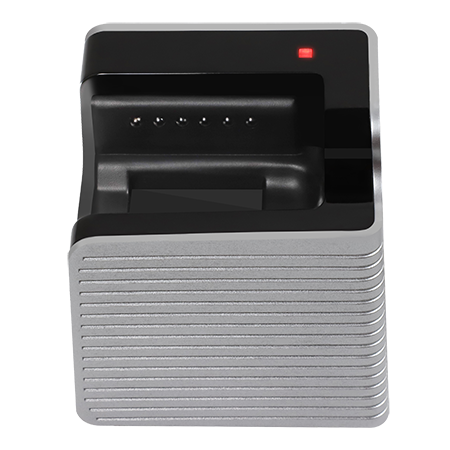

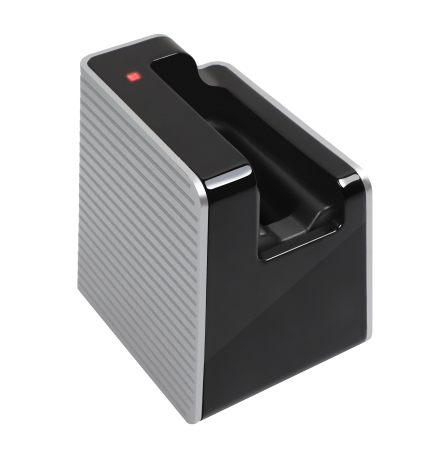

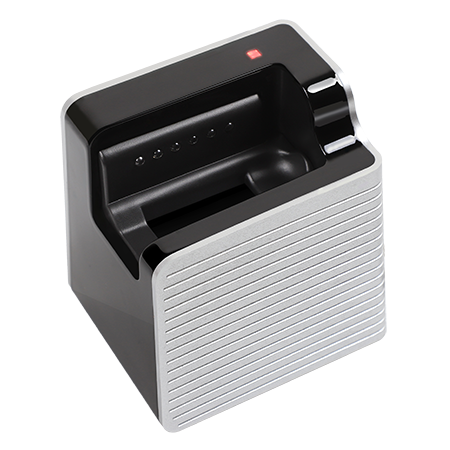

Finger Vein Acquisition Instrument
XG-C600
XG-C600 finger vein collector refers to a data acquisition terminal extended on XG-V6S. XG-C600 has rich communication interfaces and is compatible with multi system cross platform applications. The collected data is compatible with the existing XG-V6S and XG-V6, and can be shared between the server and the terminal, single machine and multi machines users. It provides multilingual SDK, to meet the development needs of users in various industries.
Finger Vein Acquisition Instrument XG-C600
Overview
XG-C600 SOC is a high-performance 32-bit microprocessor customized by XGZX. It has high-performance DSP computing ability, the core adopts SCM architecture. SOC typical working frequency 128MHZ, the computing speed of 1:1 mode is less than 1S. SOC has rich peripheral interfaces, such as USB2.0 device, full duplex UART, PWM voice output, etc., it also has extended functions. Finger vein collector can be used in identity authorization authentication, login device, social insurance, examination, payment system, dongle, etc.
Parameter

  Identification method

  server side 1:1/1:N comparison

  Recognition speed

  <1 second

  Communication interface

  USB2.0, wired network, WIFI, Bluetooth

  Support platform

  Windows、Linux、Android、IOS etc.

  Supporting languages

  C#、VB、OCX、JAVA

  Working voltage

  DC 5.0V(±5%)

  Working current

  <120mA/5V


Features

 Product features:

● Single chip microcomputer system, safer and more reliable

● Ergonomic design with left single side light source, open structure

● Multi platform SDK, the only product with the most compatible platforms in China

● Support backstage database and networking verification

● Support drive free USB, making installation and use more convenient

● Support human voice output

● Full color indicator instructions


?  Function extension:

● Extensible network, Bluetooth


?  Industrial Design:

● The acquisition window adopts open type design, which makes the user experience the product more intuitively, convenient for cleaning and daily maintenance

The camera lens is designed with multi-mode, multi-layer and high transparent glass, which can effectively suppress distortion and stray light interference

● IP42 protection level


?  Product application:

● Authentication, login device, social insurance, examination, payment system, dongle and other scenarios
