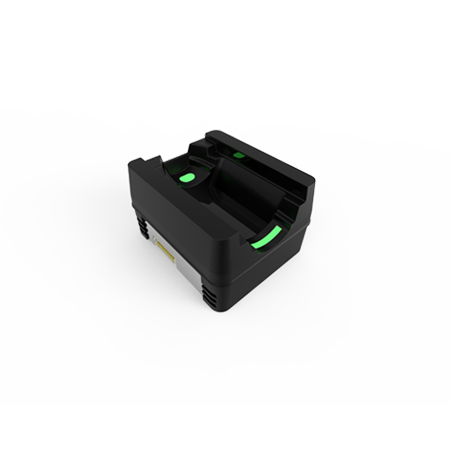

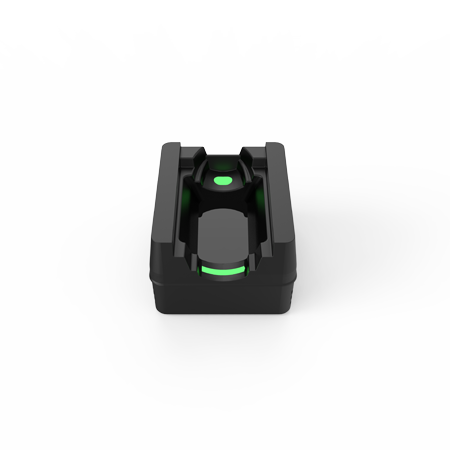

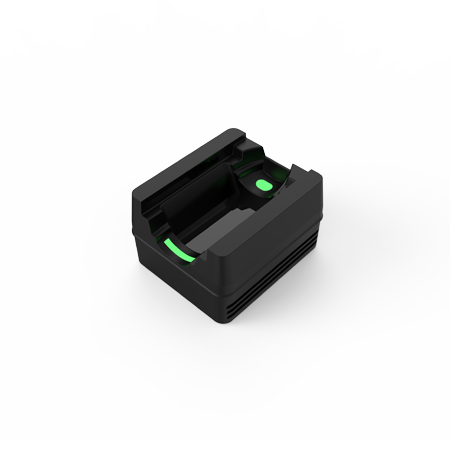

Multifunctional finger vein module

XG-V5

Introduction: XG-V5 is a multifunctional finger vein module newly developed by XGZX, with high-performance DSP computing ability, the core adopts SCM architecture, domestic exclusive dual breathing lamp hardware design, dual-color mold manufacturing process, effectively solve the problem when the user does not know how to use the finger veins correctly. It has the characteristics of fast power on, high efficiency, low power consumption, high integration, small size, and never crash.

Overview

Overview: X5G-V5 CPU uses Synochip's high-performance 32-bit microcontroller based on the ARM Cortex-M series core. CPU adopts 144MHZ main frequency, supports 2 UART, 1 USB2.0, 1 optical CMOS sensor interface. Various communication and control ports such as wired network, wireless WIFI, Bluetooth etc. can be expanded through the port. It is suitable for various product integration and system engineering application such as identity authorization authentication, authorized self-service terminal, access control attendance, access gate, personal U-KEY etc. The product supports multi-platform secondary development and multi-platform DEMO experience.

Parameter

Parameter: Product appearance patent: ZL 2018 3 0486049.1

Product utility model patent: ZL 2018 2 1413589.8

Test report of the Ministry of Public Security: Gongjingjian No. 1815064

Product Item No.	XG-V5
Identification method	1：N/1：1 comparison
False accept rate（FAR）	＜0.0001 %（the highest safety level）
False reject rate（FRR）	＜0.01 %（high safety level）
Recognition speed	＜1 second
Communication interface	USB2.0、UART（Support low power consumption mode）
Support platform	Windows、Window CE、Linux、Android、IOS、MCU
Working voltage	DC 5.0V（±5%）
Working current	＜27mA/5V
Working environment	temperature：-20℃～60℃ humidity：20%～80%RH
Module size (mm)	484029 （lengthwidthheight）
Waterproof grade	IP56

Features

Product features:

● The smallest circuit design in the industry

● Exclusive application of SCM finger vein system

● It is the first domestic dual breathing lamp hardware design, dual-color mold manufacturing process, solve the usage problem, and make better user experience.

● Multi platform SDK, supporting domestic independent systems such as Shenwei, Longxin, Feiteng, Qilin, Huawei Hisilicon, etc.

● Finger vein equipment with the lowest power consumption in the industry, the working power consumption can be as low as 27mA

● Waterproof grade reaches IP56

Function extension:

● Extensible support for Wigan, USB, and other interfaces

● Expandable support for keypad, indicator light, relay, alarm, network and other functions

● Support extended PWM voice output

Industrial Design:

● Acquisition window, dual breathing lamp hardware design

● The finger vein optical lens adopts 4G design pure glass technology, with stronger light transmission, less distortion and no aging

● The window filter adopts tempered glass and double-layer coating technology, which has better light transmission and stronger hardness

Product application:

identity authorization authentication, login device, social insurance, examination, payment system, dongle, self authorization terminal, access control attendance, intelligent access gate
