Finger Vein Smart Lock Module
XG-V7S
XG-V7S finger vein recognition module is based on the upgraded hardware and software of XG-V7 appearance structure to launch products with specific functions. MCU adopts fingerprint AS608, and the performance of hardware and software of the module is comparable with that of fingerprint reader.

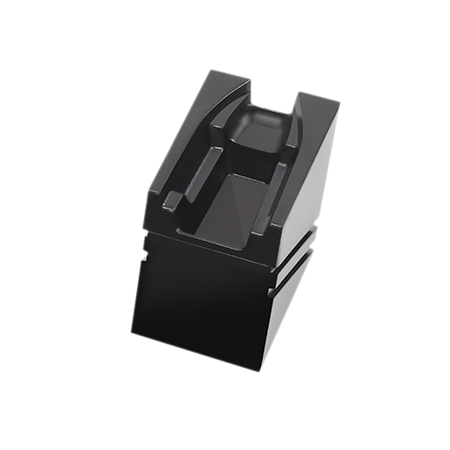

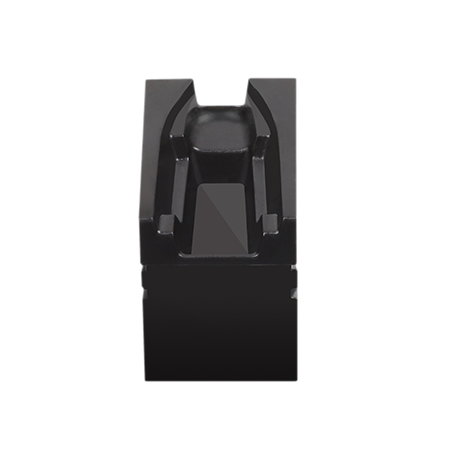

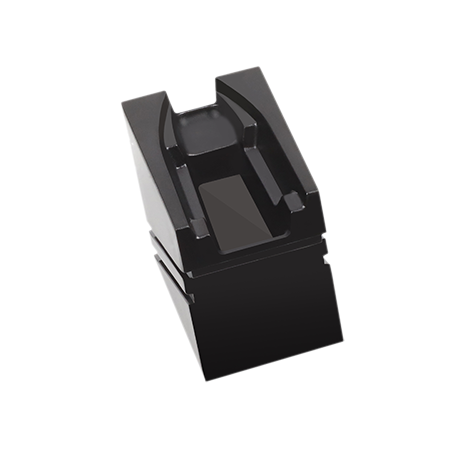

Finger Vein Smart Lock Module XG-V7S
Overview
The MCU of XG-V7S adopts AS608 chip, ARM Cortex-M core 32-bit micro controller, and its working frequency is 144MHZ. When the user capacity is 100 fingers, the longest recognition speed is no more than 600mS, the normal recognition speed is 200mS on average, the power on speed is less than 10mS, the working power consumption of the reader is only 27.5mA, the low power consumption standby is as low as 0.2uA, which is the fastest, the lowest power consumption and the smallest finger vein integrated module in the world, suitable for the secondary development of intelligent locks, safes and other products.
Parameter

Identification method

1：N/1：1 comparison

False accept rate（FAR）

＜0.0001 %（the highest safety level）

False reject rate（FRR）

＜0.01 %（high safety level）

Users capacity

≤100ID/300 templates

Recognition speed

＜1 second

Vein template data

single template ≤ 1K bytes      template name format：FV_U(ID).xgd

Communication interface

USB2.0、UART

Working voltage

DC 5.0V（±0.5V）or DC 3.3V (±0.3V)

Working current

＜27.5mA/5V or＜27.5mA/3.3V

Standby current

＜2uA

Power management mode

capacitor induction power on, system startup time < 10mS

Working environment

temperature：-20℃～60℃     humidity：20%～80%RH


Features

?  Product features:

●The MCU of XG-V7S adopts fingerprint AS608, ARM Cortex-M core 32-bit microcontroller, and the working frequency is 144MHZ

● AS608 has rich peripherals: 1 USB2.0 full speed device interface, 2 UART interfaces, 1 voice PWM output interface

● Integrated finger vein module with the fastest speed, the lowest power consumption and the smallest volume in the world


? Function extension:

● Full duplex serial port TTL level supports extended SPI mode

● Support extended PWM voice output


? Industrial Design:

● Adopt dust-proof and waterproof design, IP65 protection grade

● The camera lens is designed with multi-mode, multi-layer and high transparent glass, which can effectively suppress distortion and stray light interference


? Product application:

● Smart lock, safe
